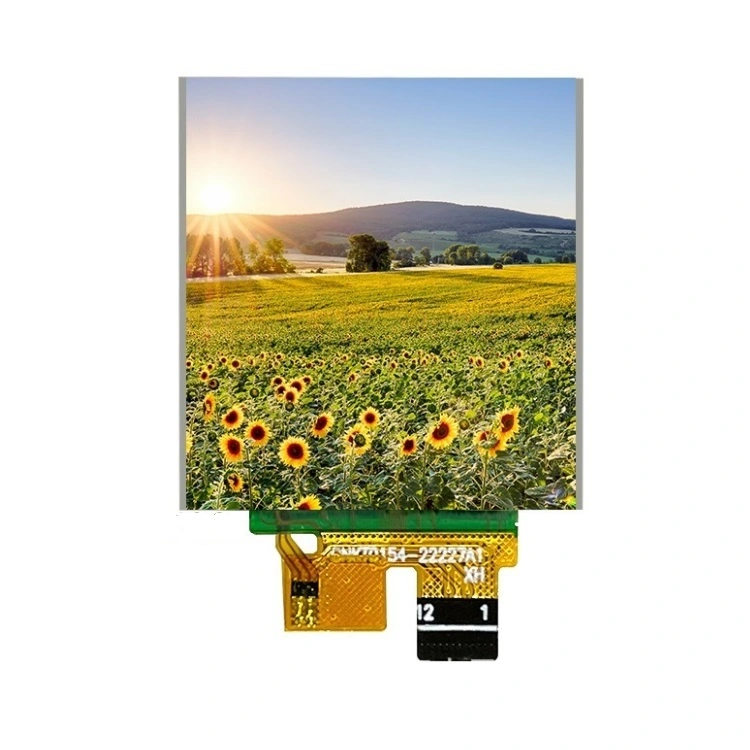

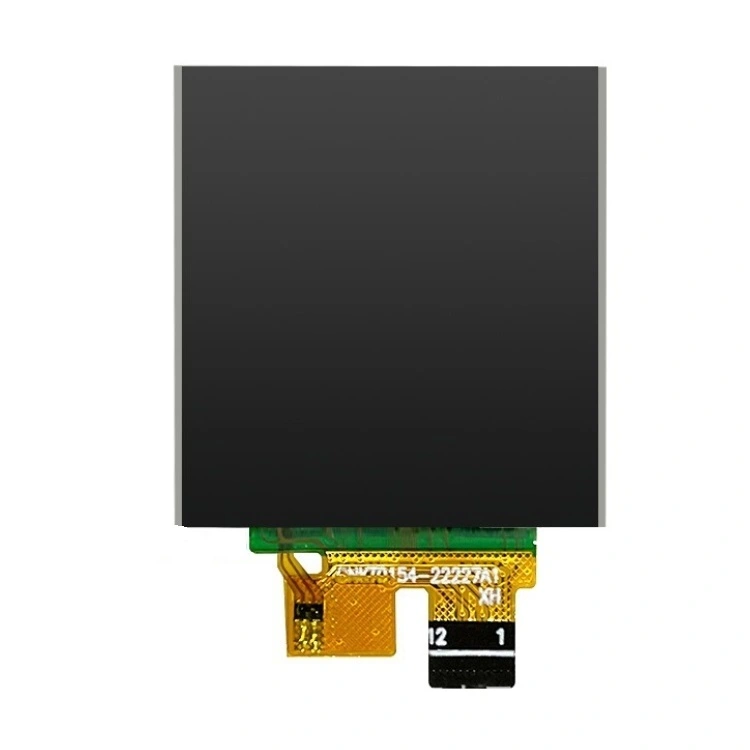

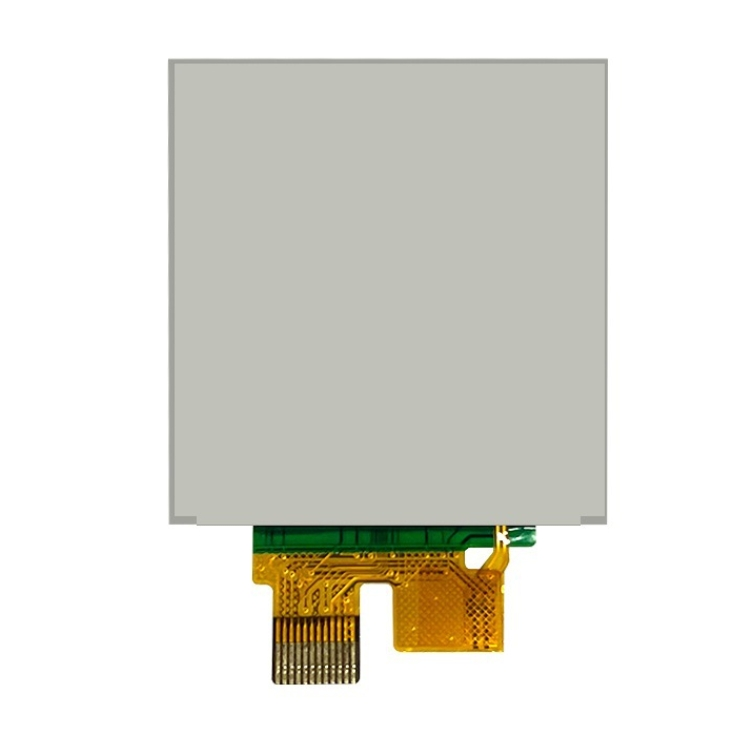

1.54 inch TFT LCD Module

Designed with the new technology, EDL® 1.54 inch TFT LCD Module boasts a slim profile and a lightweight design. Featuring a resolution of 240x240 pixels, this module provides crisp and clear images, even in bright daylight conditions. This module also comes equipped with a backlight control function, allowing users to adjust the brightness of the screen as per their preference.

Send Inquiry

Product Description

EDL® 1.54 inch TFT LCD Module is compatible with multiple circuit boards, making it easy to integrate into a variety of projects. In addition, the module features a wide viewing angle, making it easy to view the display from any angle.

1.54 inch TFT LCD Module Specification

Model No.: EDL0154-22227A1
LCD Size: 1.54 inch
Panel Type: IPS TFT
Resolution: 240x240 pixel
TFT Driver IC: GC9307N
Viewing Direction: Full view
Port (Interface): SPI/12PIN
Module Size: 31.52x33.72x1.96mm
Working Temperature: -10~60 degree

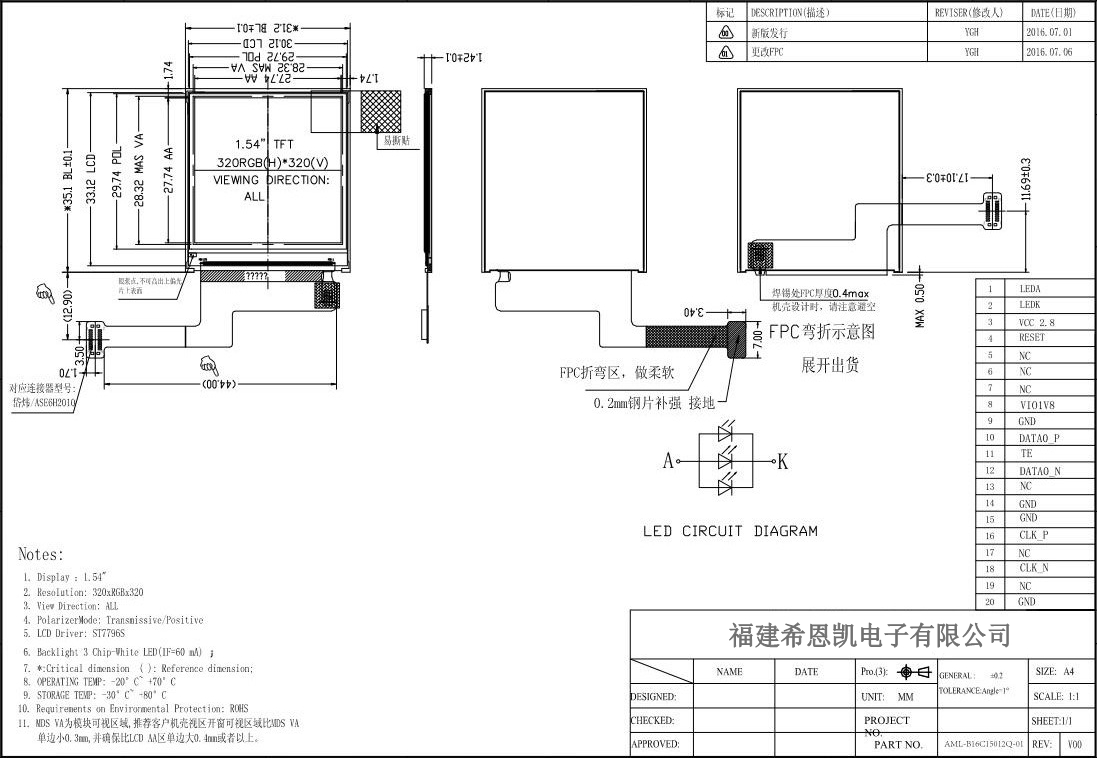

1.54 inch TFT LCD Module Mechanical Drawing
