160 x 160 Graphic Display Module

EDL is a custom lcd display manufacturer in china. With rich experience of R&D team, advanced facilities and strict quality control measures, we provides customized graphic LCD display solutions that meet your exact requirements and help you achieve success in your projects. EDL160160-22293A 160 x 160 Graphic Display Module，featured with high stability, wide temperature, and excellent viewing experience with no black or white dots, making them ideal for applications such as Power meters, OBD testing equipment, fire-fighting equipment, etc.

Send Inquiry

Product Description

The following is the introduction of high quality 160 x 160 Graphic Display Module, hoping to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future!

Model: EDL160160-22293A

Features:
1）high stability
2）Wide temperature
3）Excellent display with no black or white dots

Specification:

1、Resolution: 160 x 160
2、Active Area: 54.38(W)×54.38(H) mm
3、Outline Dimension:66.5(W )×72.5(H)×5.1(T)mm
4、Display Mode: FSTN,Negative (grey), Transmissive
5、LCD 0perating Voltage：3.3V
6、0perating Temperature：-20°C~70°C
7、Storage Temperature: -30°C~80°C
8、Viewing Direction: 6: 00
9、Connector: 8080/6800/4-spi
10、IC: ST75161
11、Backlight: LED/White
12、RoHS Compliant:Yes

Applications: Power meters, OBD testing equipment, fire-fighting equipment, etc

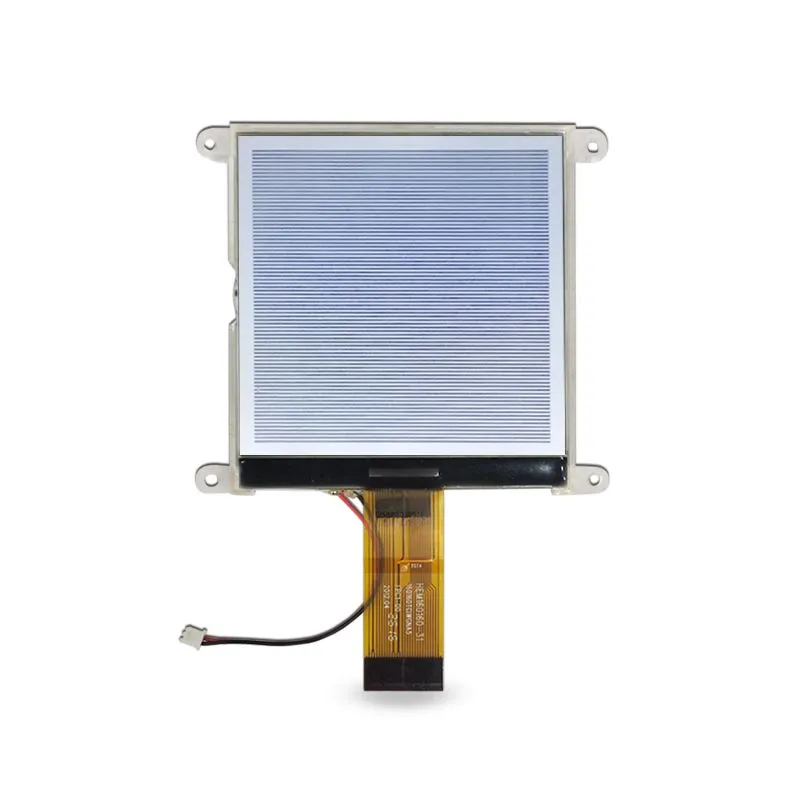

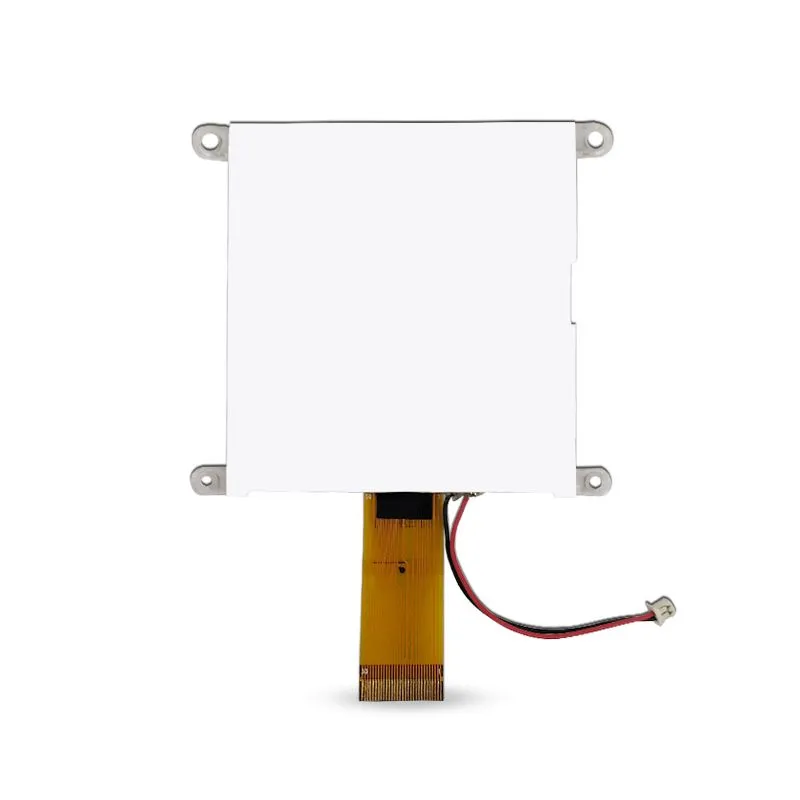

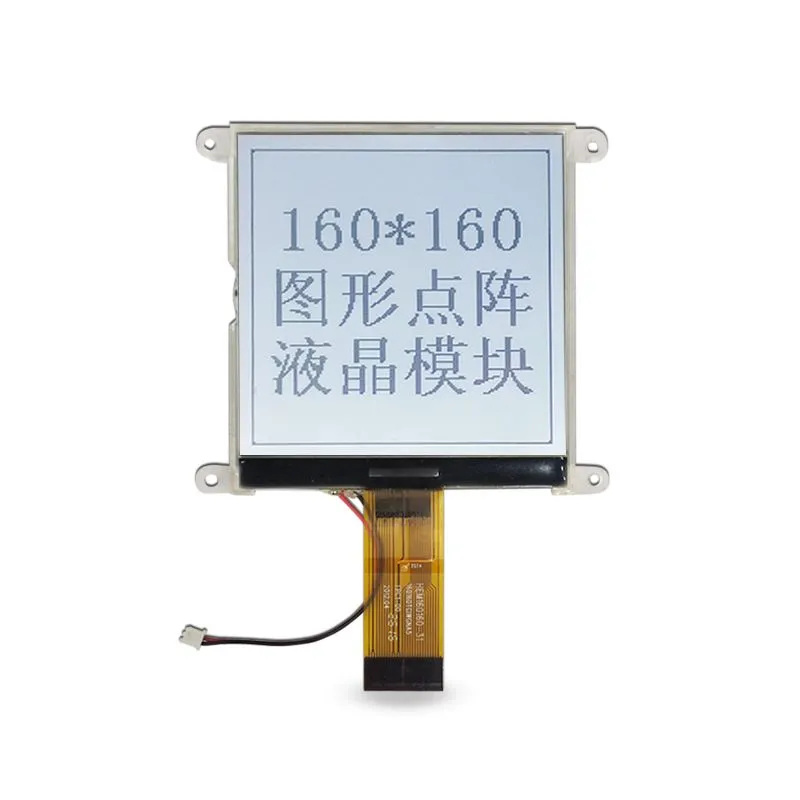

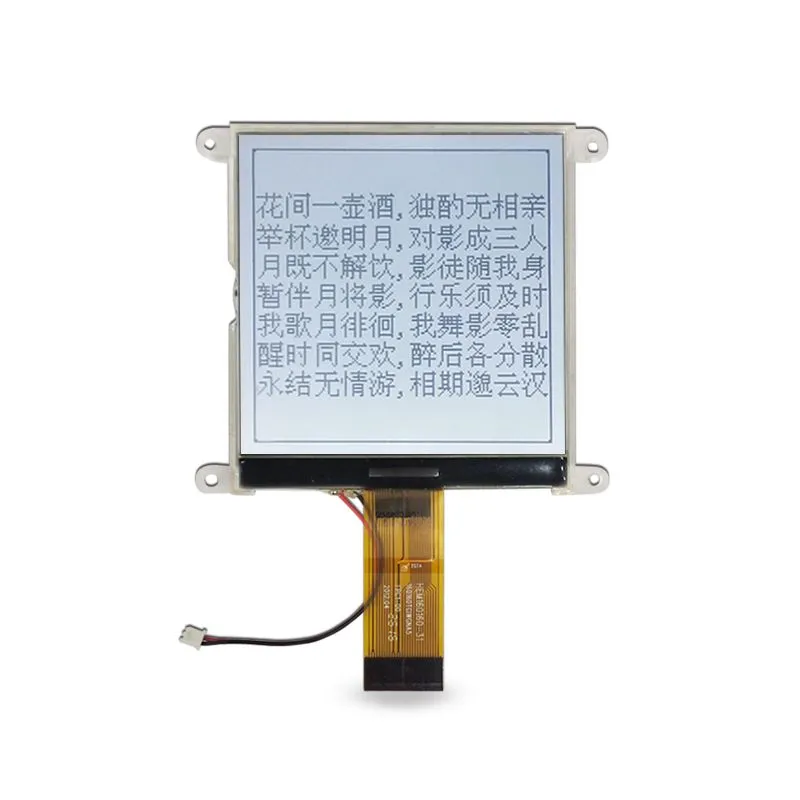

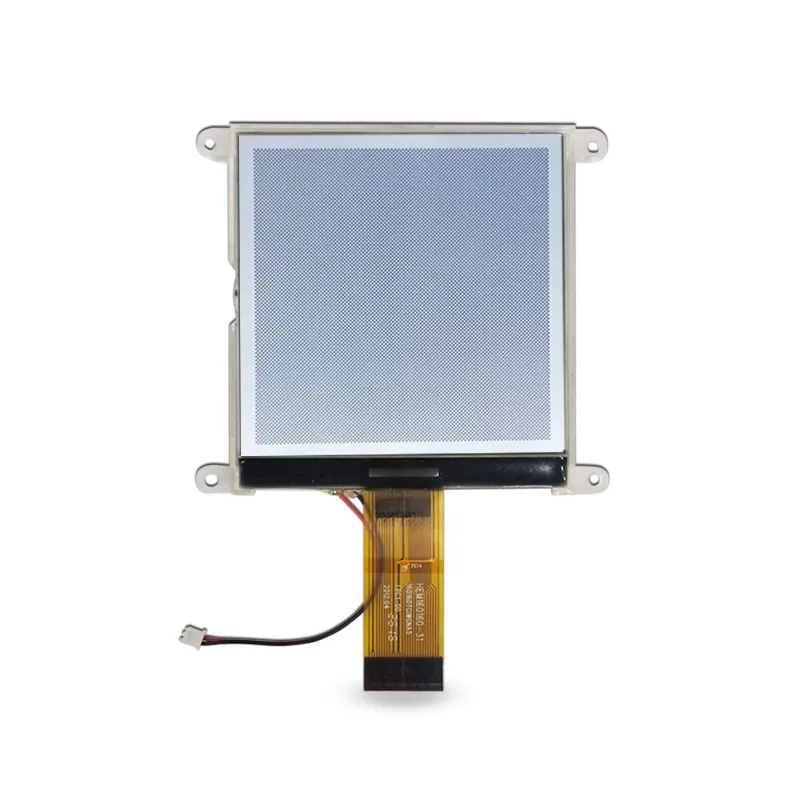

Product images as below:
