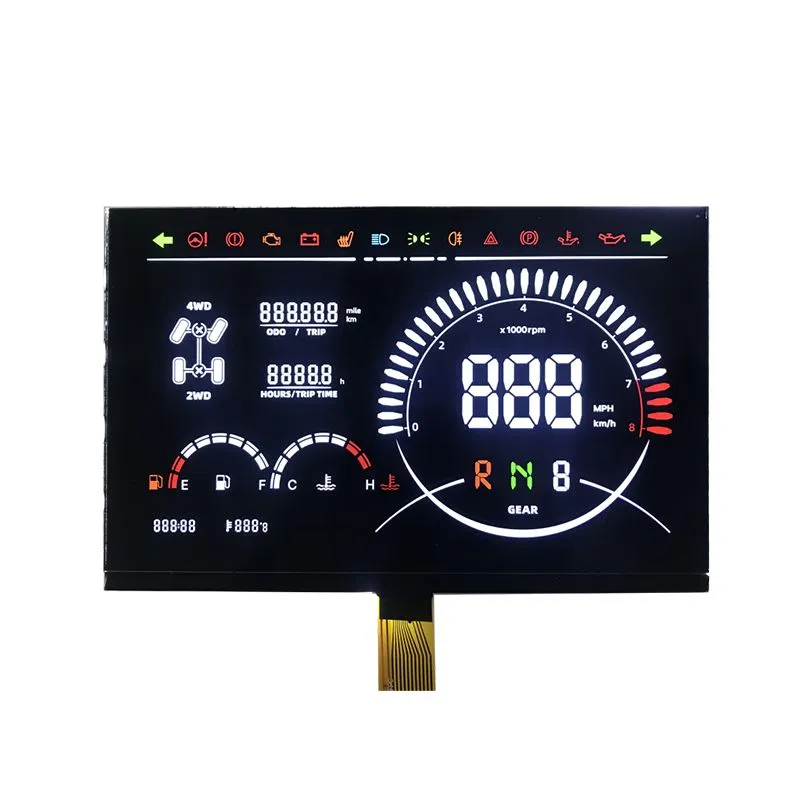

Segment LCD Display Module

EDL is a custom lcd display manufacturer in china. With rich experience of R&D team, advanced facilities and strict quality control measures, we provides customized segment LCD display solutions tailored to the unique requirements of our clients. The EDL high quality EDLD0903-23830A1 Segment LCD Display Module is designed for easy integration and low power consumption, color screen printing, excellent visibility under sunlight and ultra-wide temperature make it ideal for use in vehicles such as motorcycles, electric vehicles, E-bikes, cars, etc.

Model:EDLD0903-23830A1

Send Inquiry

Product Description

The following is the introduction of high quality EDLD0903-23830A1 Segment LCD Display Module, hoping to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future!

Model：EDLD0903-23830A1
Features:
1)Color screen printing
2) Clear and easy to read under sunlight
3) Ultra-wide temperature
4) Low power consumption

Specification:

1、Active Area: 152.4 mm (H) x 91.44 mm (V)
2、Outline Dimension: 202.5 mm (H) x 121.58 mm (V)
3、Display Type: VA, NEGATIVE
4、LCD 0perating Voltage：5.0V
5、0perating Temperature：-30°C~85°C
6、Storage Temperature: -40°C~90°C
7、Viewing Direction: 6: 00
8、Polarizer Type: TRANSMISSIVE
9、Connector: SPI
10、IC: UC2621C
11、Backlight: White
12、RoHS COMPLIANT：Yes

Applications: Power meters, OBD testing equipment, fire-fighting equipment, etc
